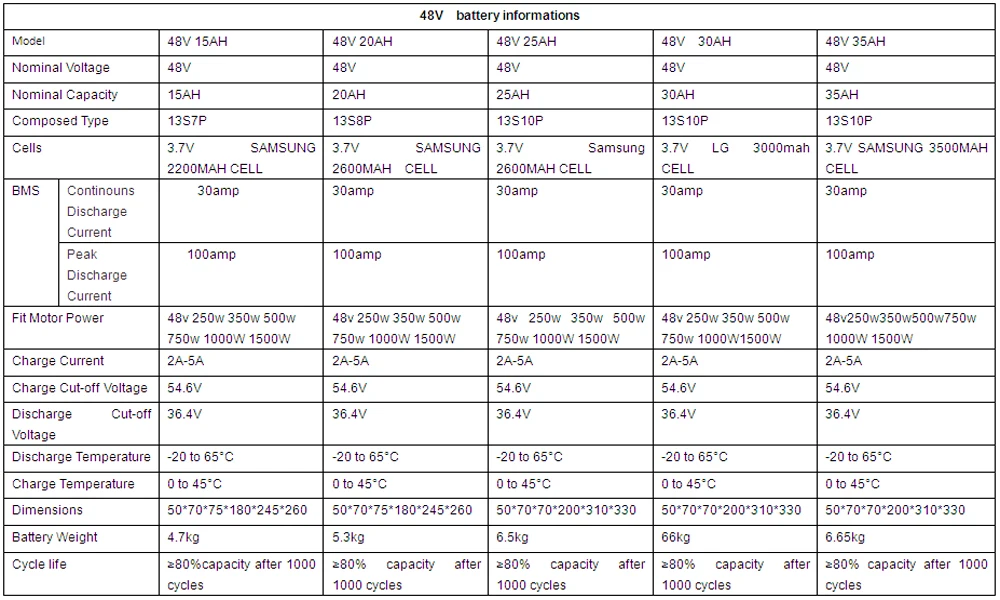

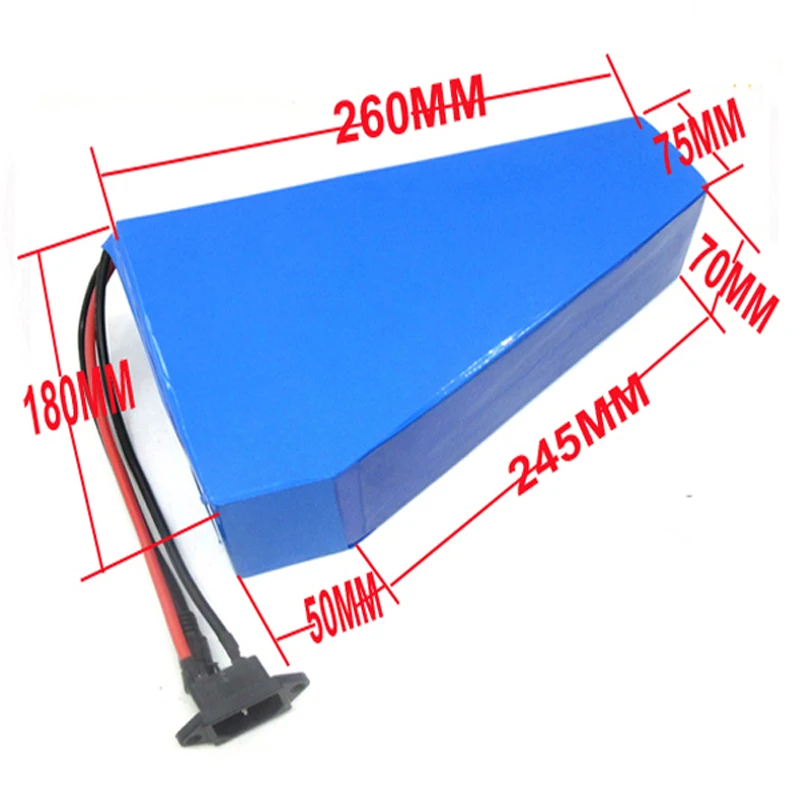

Battery Model 4820 Voltage 48 Capacity: 20 Cell Type: 3.7v samsung 3c 18650 cell Source Resistance <40(mO) Cell Quantity (parallel*series) 13S8P Charge Way of charge CC/CV Standard charge Current 2A Max charge current 5A Charge Cut-off Voltage 54.6V CellOvercharge protection Voltage 4.2V/CELL Discharge Continouns Discharge Current 30Amp ( can be customized) Peak Discharge Current 100Amp( can be customized) Cell Overdischarge Voltage 2.8v/cell Discharge Cut-off Voltage 36.4v Cycle Life 1000 times Safety test No firs ,No explosion Overcharge Safety Test Crush Safety test Needling safety test 130 C high Temperature safety test Weight 5.0kg Size 50*70*70*180*245*260mm( can be customized) Fit moto power Less 1400w Working Temperature 0—45C -20---65C Retention of charge >95% Certificate CE,UL,ROSH,UN38.3,MSDS Application E-bike,E-motorcycle,E-scooter Warranty One year Charger Parameters Applying Battery Type: Lithium Input Voltage (AC/V): 100 to240V Output Current (A): 2 A Output Voltage (DC/V): 54.6V Charging Mode: CC/CV Type of DC Output Connector: PLUG Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter ! (Suitable Wattage of Motor: from 250 Watt to 1400 Watt suggested.) Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by. Does not use or leave the battery near a heat source as fire or heater Use the battery charger specifically for that purpose when recharging. Do not reverse the position and negative terminals. Do not connect the battery electrodes to an electrical outlet. Do not discard the battery in fire or a heater. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not strike, trample or throw the battery. Do not directly solder the battery and pierce the battery with a nail or other sharp objects 1. Cells -A grade cellsto make sure batteries inhigh and full capacity 2. Protection -Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload 3. Compose Type : Injection Technology tomake battery more stable. 4. Certifications : CE,UL,FCC, RoHS, ISO9001 5. Long life cycle, No memory, environment friendly. Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; 1. High energy density 2. High working voltage for single battery cells 3. Pollution-free, environment friendly 4. Long cycle life; It extends its cycle life up to 800 cycles 5. Capacity, resistance, Voltage, platform time consistency is good 6. Simplifying battery management system (BMS) and a battery charger 7. With short-circuit production function, safe and reliable 8. Factory price & High quality 9. Fast charging 10. Light weight, small size 11. Large overcharge tolerance and safe performance 12. Self balance 1. OEM orders are available 2. Superior quality and cost-performance ratio 3. Tags, plugs and connectors are available 4. We could design and produce the battery pack with aluminum alloy shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure appearance) 5. Bulk pack is available Lithium ionbatteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density. Li-ion batteries are lighter than other equivalent secondary batteries—often much lighter. The energy is stored in these batteries through the movement of lithium ions. A key advantage of using Li-ion chemistry is the high open circuit voltage that can be obtained in comparison to aqueous batteries (such as lead acid, nickel metal hydride and nickel cadmium). Long battery life: 1000 plus recharges Ultra light and small size Super high discharge rate means more power. Super long range It never explodes! Peace of mind for you! No Memory Effects Maintenance Free: only need to charge it once every month if you are not using it 48V 20AH 1000w Lithium Battery with PVC Case,BMS and Charger: Parts included: 1. Lithium Battery with pvccase 2. Built-in BMS board 3. Charger (54.6V 2.0A 100-240V 50/60HZ US,EU,UK,AU PLUG) 4.include bag This battery can fit these motor kits and so on 48V 350W BAFANG Brushless Geared Mid-Drive Motor eBike Conversion Kits 48V 500W BAFANG Brushless Geared Mid-Drive Motor eBike Conversion Kits 48V 750W BAFANG BBS02 Brushless Geared Mid-Drive Motor eBike Conversion Kits 48V 1000W BAFANG BBSDH Brushless Geared Mid-Drive Motor eBike Conversion Kits TONGSHENG TSDZ2 48V 500W Brushless Geared Mid-Drive Motor eBike Conversion Kits TONGSHENG TSDZ2 48V 350W Brushless Geared Mid-Drive Motor eBike Conversion Kits You can choose battery discharge port : A ,B,C,D 1.Light electricvehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs 2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car 3. Electric tool: electric drill, electric saw, lawn mower 4. Remote control cars, boat, aircraft, toys, 5. Solar and wind power generation energy storage devices 6. UPS emergency lights, warning lights and miners lamp 8. Small medical equipment and portable equipment experience We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience to manufacture Lithum ionbattery,thefactorypassedISO 9001:2008 certification. Strict process management and control Each process for making battery wereunder strict managementand control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.Morethanone year Guarantee,there are safety and operating instructions for your reference. Quickresponsetoclients'enquirieswithin12hrs •Tailor-madesolutionprovidedbyourexperiencedteamandprofessionalengineers for lithium polymer battery •Morethan10yearsexperienceinproducingbatteryproductsforvariousapplication. •Valuequalityandlong-termcooperationtoreachwin-winrelationship.
