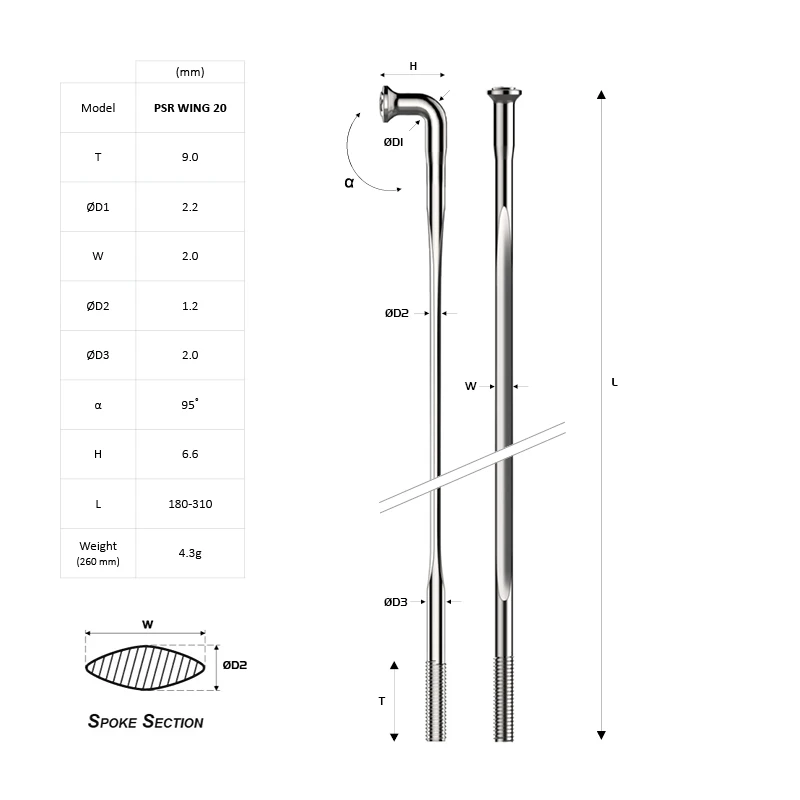

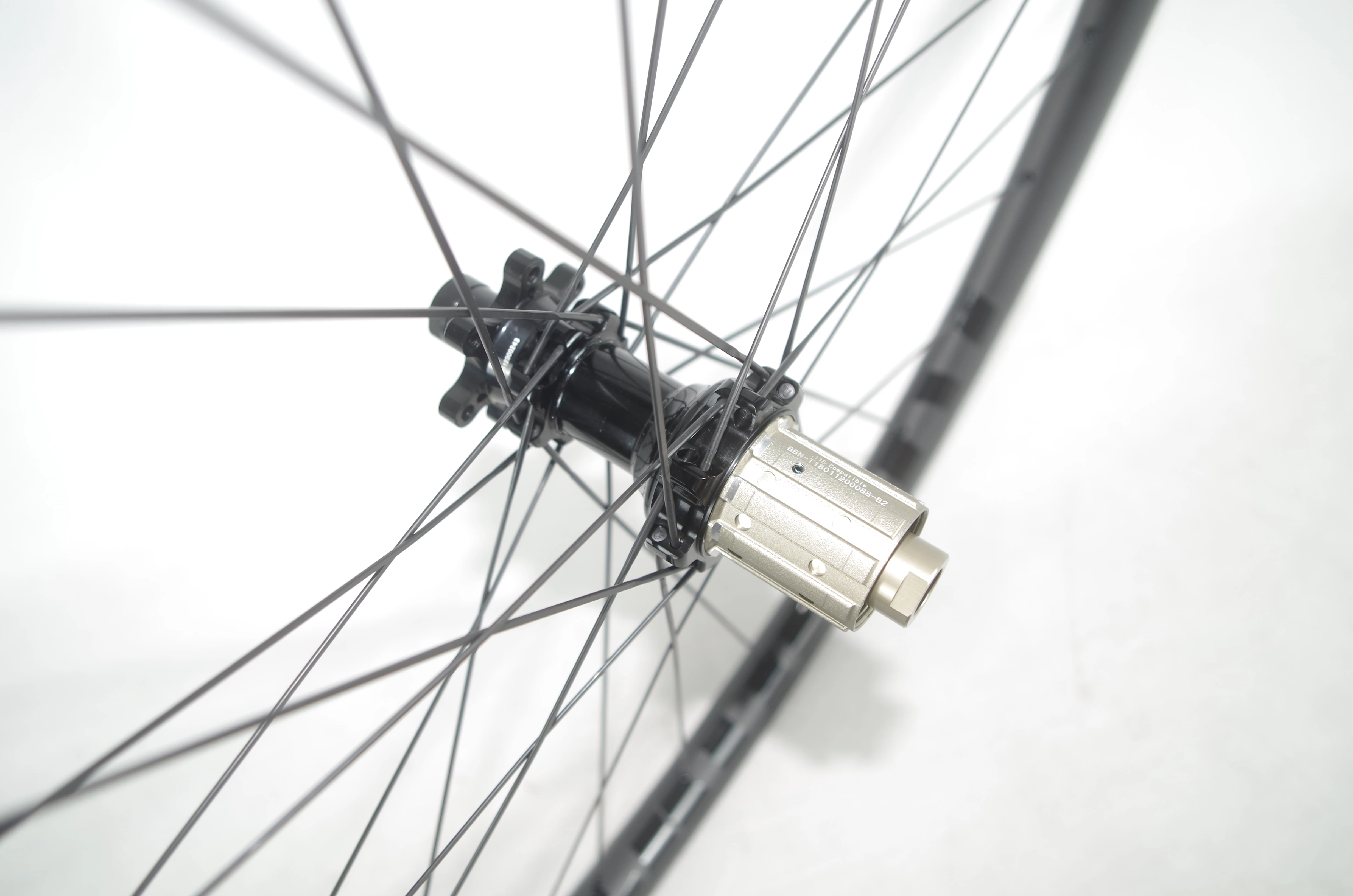

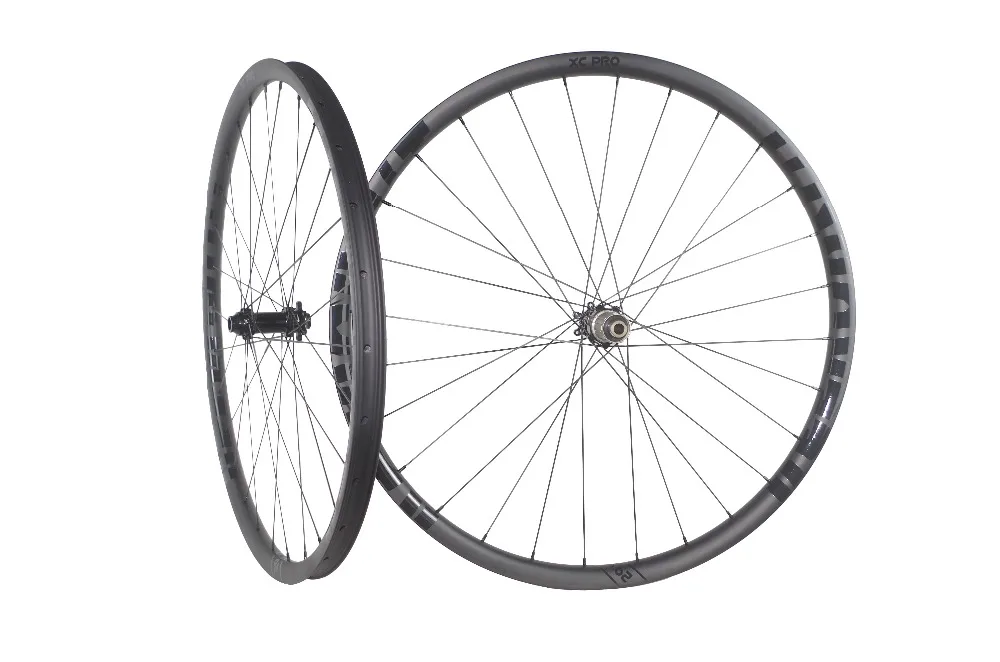

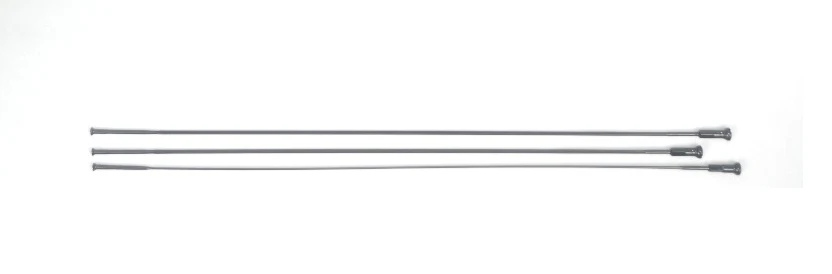

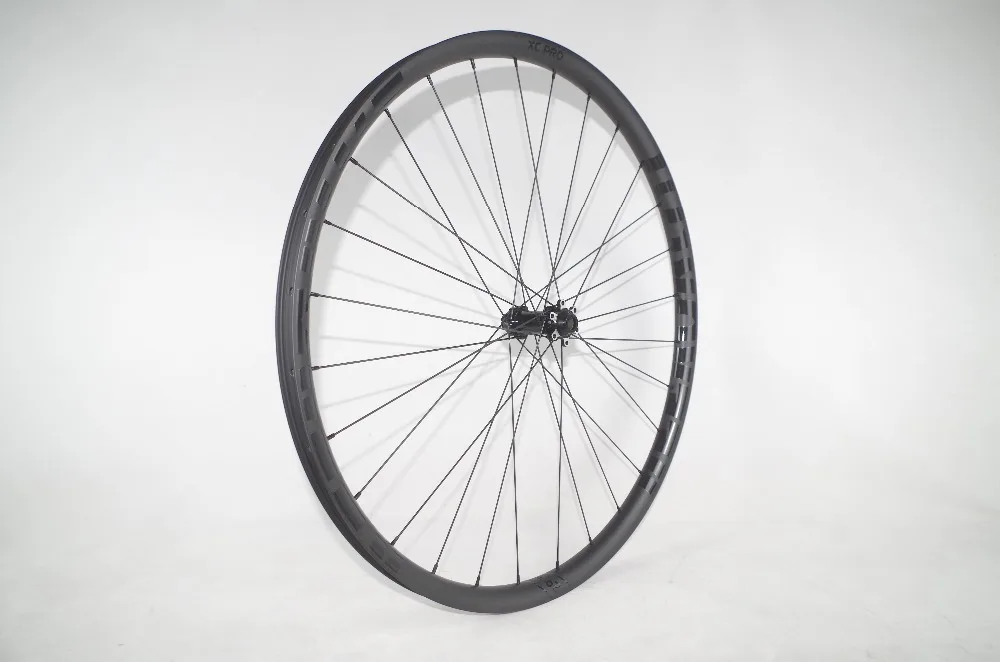

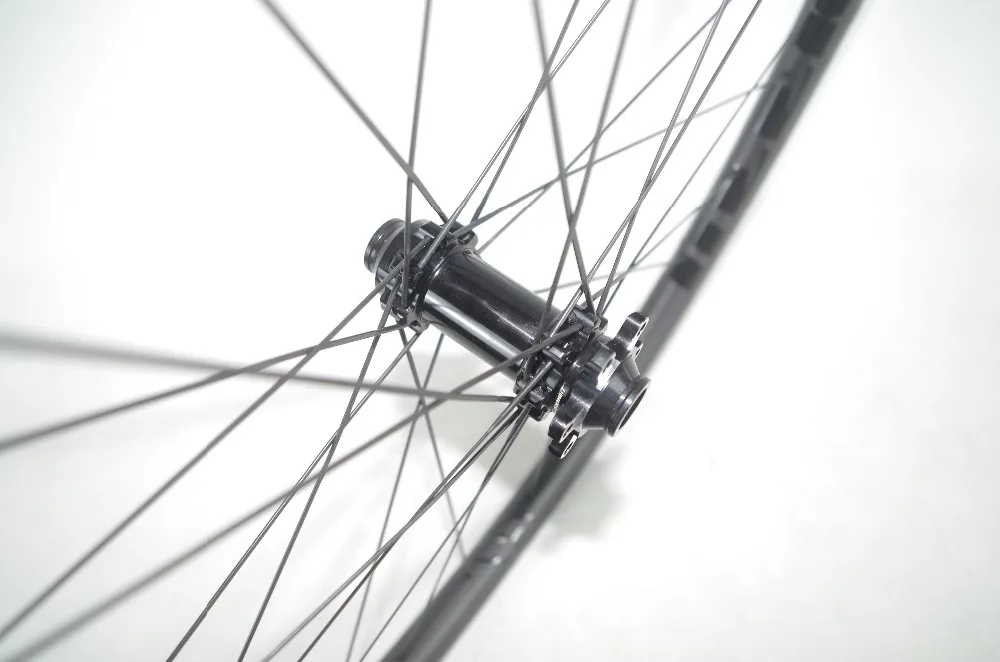

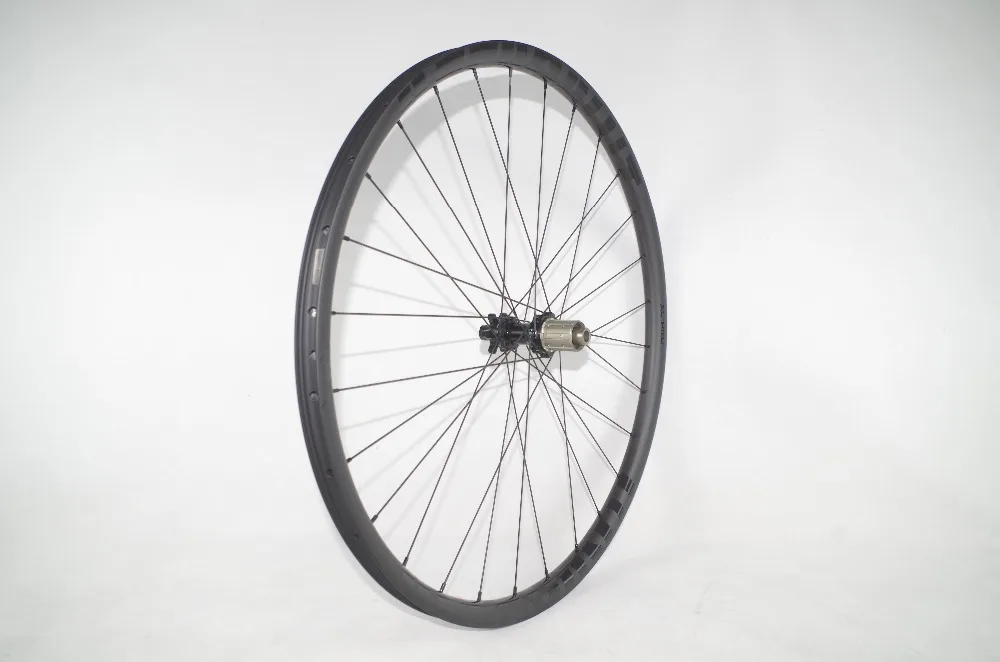

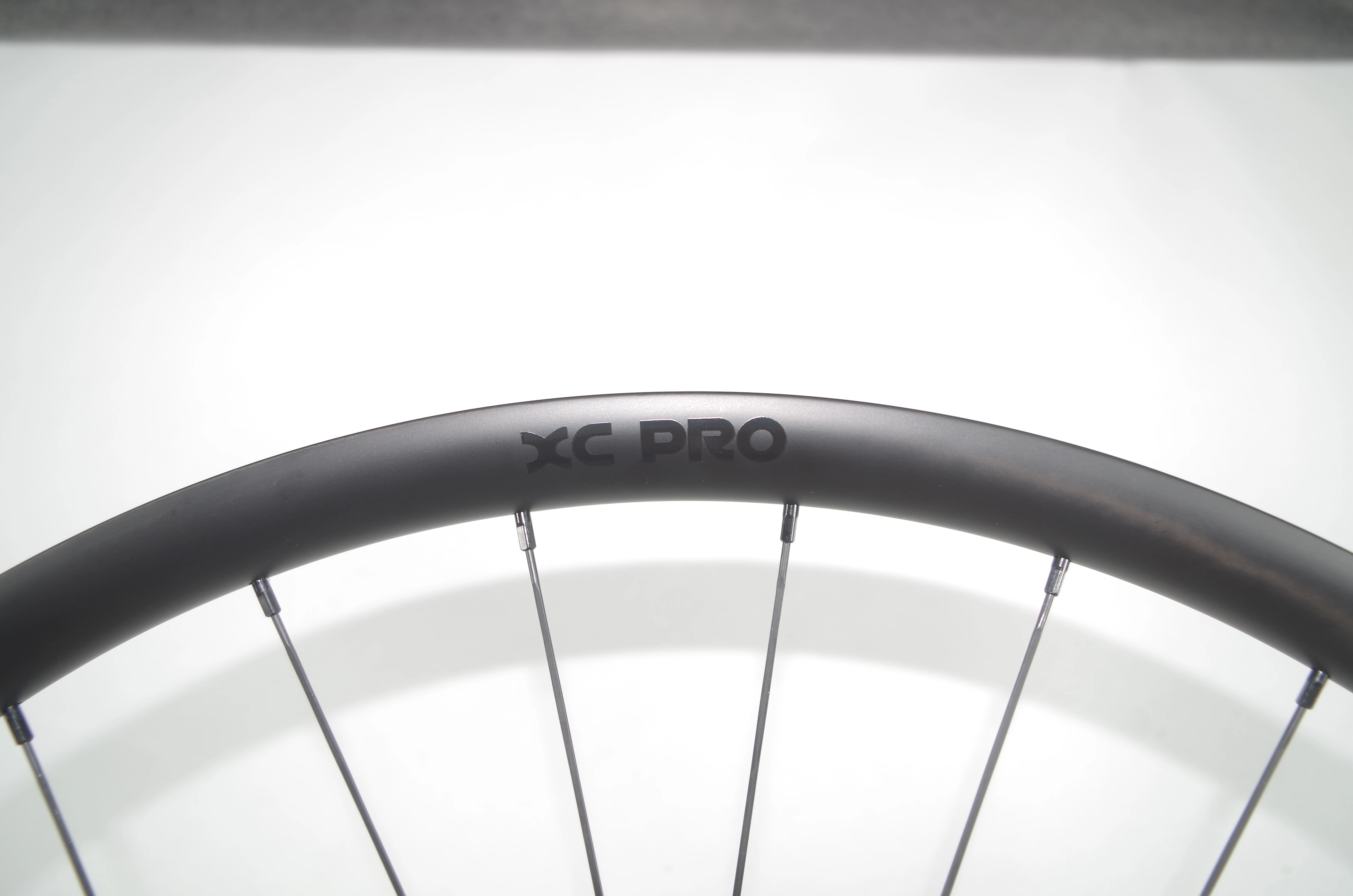

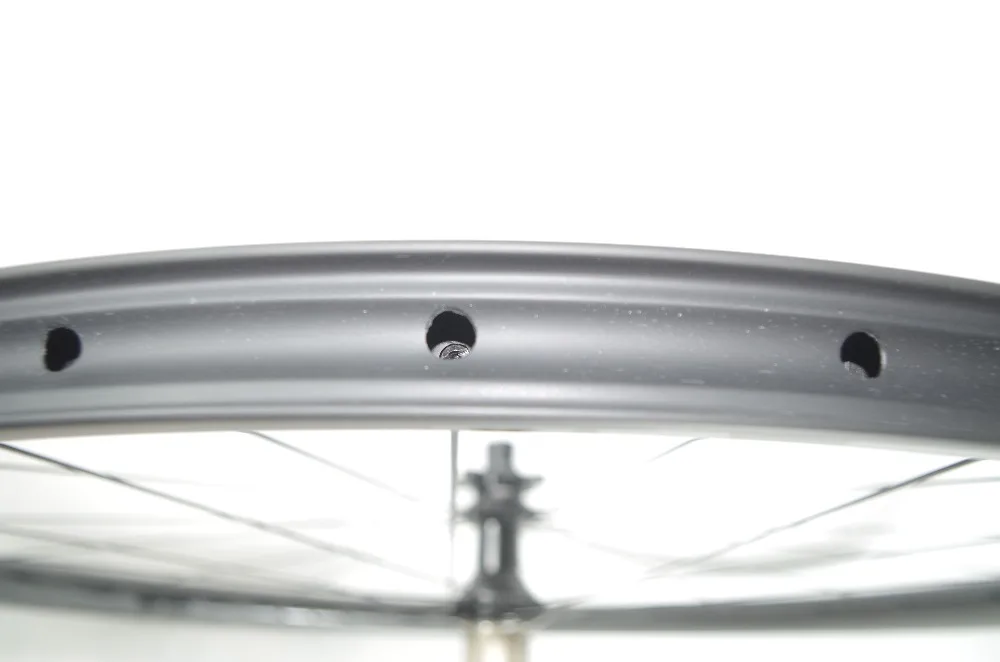

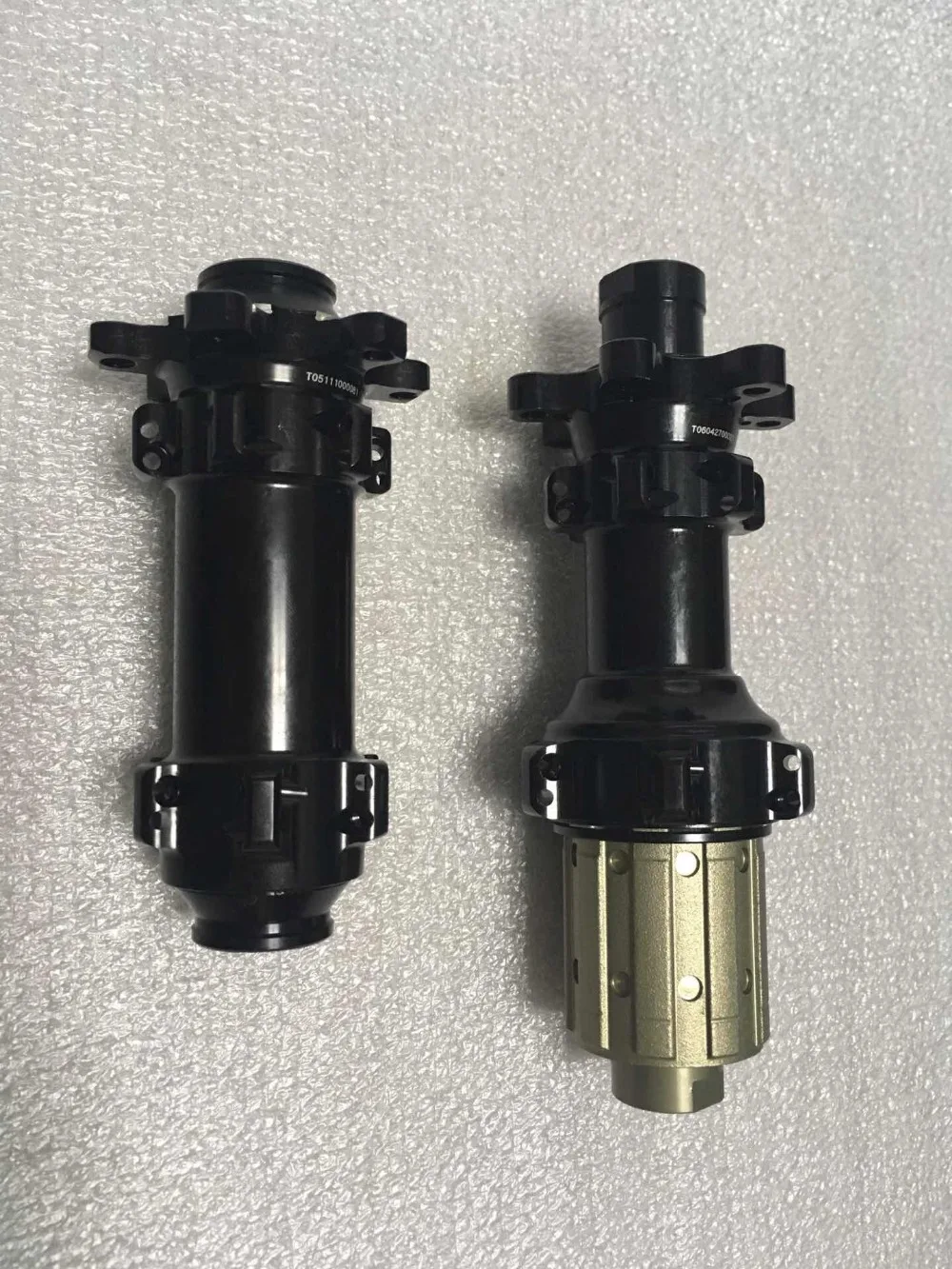

Deerobust Lightet 29er 24mm deep 30mm wide Asymmetric MTB XC Carbon Wheels Tubeless SPECIFICATIONS: RimDepth: 24mm RimWidth:30mm Applicable Bicycle: MTB Bicycles, Cross Country Wheel type: Wheelset (Front + Rear) Rims: 100% Toray® T700 Carbon+Ti ring+high TG Rim Type: Clincher(Tubeless Compatible) Rim Weight: UD: 320±15g/piece (SL VERSION) 3k: 335g ±15g/piece (SL VERSION) Finishing: Matte/ Glossy Carbon weave: UD/ 3K/ 3K Twill/ Spokes: PILLAR Wing 20, PSR NEW Color ( black ) Weight: 4.3g/piece Sapim Cx-Ray Aero , PSR Color ( black ) Weight: 4.3g/piece Spoke count: Option 1: Front: 24 Rear: 24 Option 2: Front: 28 Rear: 28 Hubs (Option 1): DEEROBUST DR35 DISC HUBS Color ( black) weight: 91g+232g=323g Hubs (Option 2): DEEROBUST DM302 DISC HUBS Color ( black) weight: 107g+212g=319g (SHIM) weight: 107g+205g=312g (XD) Cassette body Compatible for - S-himano 9/10 / 11s - S-ram 11s Nipple: Sapim SILS Aluminum alloy (black) Max recommended Rider's weight: 100kg/220lbs Rim Rim Model Hub model Spoke Spoke Spoke Weight (g) Weight (g) Weight (g) Lacing Lacing Depth Width (Aero Bladed) (F/R) Type (F/R) +-5% (F) +-5% (R) +-5% (F) (R) 24mm 30mm 30X-LT-1 DEEROBUST DR35 Pillar Wing 20 24/24 Straight Pull 1199 529 670 2x 2x 30X-LT-2 28/28 1243 551 692 2x 2x 30X-LT-3 Sapim CX RAY 24/24 1199 529 670 2x 2x 30X-LT-4 28/28 1243 551 692 2x 2x 30X-LT-5 DEEROBUST DM302 Pillar Wing 20 28/28 Straight Pull 1232 567 665 2x 2x 30X-LT-6 Sapim CX RAY 1232 567 665 2x 2x RIM PROFILE: Optional Specification: Rim Finish AxleType UD/ 3k/ 3k Twill Front:QR/12/15*100mm Matte/ Glossy Rear:QR*135mm/12*142mm Default option:front: 15*100mmrear: 12*142mm, UD Matte The default option will be sent if no comment is left. In cross country racing, we know that every gram counts. That's why the DeerobustSL 29 wheels place a strict focus on competitive XC racing, meaning that they deliver in the weight, stiffness, and durability departments. To do so, they're hand-built on ultralight and incredibly stiff carbon rims that are manufactured with a Bead Lock design. This design pairs perfectly with tubeless tires, while also increasing both strength and impact-resistance. Meanwhile, the rims have been laced via Pillar 1420 spokes to strong alloy hubs that serve-up lightening-fast engagement and acceleration. PICTURE DETAILS: Bead Lock An 3°angled bead lock to keep the tire bead positioned on the shelf when air is released from the tire and also adds a level of safety if a tire is leaking. This features allows you to refresh sealant without having the tire bead fall into the center of the rim, resulting in a tire that is more difficult to inflate and re-seat. Nipple BedDesign Extra carbon fiber strip to reinforce the spoke hole. Hookless Design 3.5mm thickness, 35 layers pregreg to reinforce the side wall and to prevent pair leaking. Impact Resistant Construction Extra layers of prepreg that increases the impact strength and helps distribute energy and shock from impacts to the rim All rims use a blend of Toray 700 and 800 carbon fiber with the Toray 800, which is 25% stronger,used in high impact areas. WIDER TIRE Better traction, flotation and cornering to improve the riding performance. Lower tire pressure to prolong the rims’ time span. Better bump absorption for more comfortable riding. Deeper tire channel for faster tire installation. Lower rolling resistance, go wide, go fast. OFFSET ASYMMETRICAL DESIGN Asymmetrical rims build up into stiffer, stronger and more reliable wheels by improving the bracing angles of a dished wheel and equalizing the spoke tensions between the drive and non-drive side spokes. On a mountain bike wheelset with disc brakes, both the front and rear wheels have significant dish. With traditional rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center. Hubs DEEROBUST Straight PullSuper light MTB hubs.323g/pair Thru axle version and QR version available. Spokes Pillar Wing 20 Spokes. Pillar patented highest level of aerodynamic performance spoke with special design that reduce potential weak spots, reduce twisting during tensioning. Sapim CX-Ray.Optional Premium Spokes. Arguably the best spokes in the world. The aerodynamic shape of the CX-Ray is also 30% lighter than standard round spokes. Nipples Sapim SILS Polyax Aluminum alloy Nipples High profile or radially mounted wheels are prone to impacts which can cause momentary loss of spoke tension, allowing nipples to loosen. Sapim SILS Polyax Aluminum alloynipples (Sapim Integrated Locking System) have a special thread system which prevents loosening. A SILS nipple, which is self-locking, does not degrade over time, allowing wheels to be trued, re-tensioned, or re-dished with minimal hassle. Accessories We strongly believe that the quality, consistency and quality of our products is the most cost-effective in the industry. In order to ensure that DEEROBUST rims not only meet international safety requirements but also comply with additional and higher quality standards, we use SGS and EN 14781 standards when manufacturing the rims. What is the difference between UD, 3K and 12K carbon finish? What is the difference of Matte or Glossy finish? UD, 3K and 12K specify the carbon weave pattern. 3K means there are 3,000 filaments per "tow", 12K means there are 12,000 and UD means unidirectional (no pattern). There is usually an option to choose between matte or glossy. Matte results in more stealthy look, glossy will make the pattern pop. Can I have rims without nipple holes in the rim tire bed? Yes, you can decide whether to have nipple holes in the rim tire bed or not. Can I have rims with internal nipple holes? Yes, you can decide either internal nipple holes or external nipple holes. Wheel choice – deciding what rim depth is best This is an added element of modern-day cycling strategy. DEEROBUST has so many different rims at different heights, from 20mm to 88mm. We will offer some guideline on which DEEROBUST wheel matches which type of terrain: 20mm to 40mm depth – “Uphill, long climbs.” 45mm to 50mm depth – “Up and down all day.” 60mm depth – “Some up and down, flat.” 60mm depth front, 88mm depth rear – “Lead outs.” 88mm depth, Disc Wheel, Tri Spokes – Time trials. Symmetrical vs asymmetrical. Asymmetrical rims build up into stiffer, stronger and more reliable wheels by improving the bracing angles of a dished wheel and equalizing the spoke tensions between the drive and non-drive side spokes. On a mountain bike/ Cyclocross/ Gravel bike wheelset with disc brakes, both the front and rear wheels have significant dish. With symmetric rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center. So using asymmetric rims front and rear will be an optimal option. On a Road bike wheelset, the rear wheel has significant dish. With traditional rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center. So using front symmetric rear asymmetric will be an optimal option. Do you offer a choice of decal colors? Absolutely! You have your choice of white, black, bronze, blue, green, yellow, orange, pink, purple, red or turquoise. Can I choose the custom decal? Yes, feel free to send us the design file of your custom decal. We will offer corresponding quote based on the color amount and pattern. How do I choose the brake pads? We recommend the brake pads which are made of cork wood. DEEROBUST brake pads have been designed specifically for DEEROBUST’s carbon rims to offer the best balance of power and modulation in both wet and dry weather conditions. Or you can choose Swiss Stop brake pads, Reynolds brake pads, which also have excellent modulation performance. DEEROBUST lightweight racing carbon rims,wheel and spoke wheeare guaranteedfor24MONTHS. Any quality issues occur within 24 months, we are obliged to repair/replace neccessary components for free. What’s more, if there is unlucky crash/accidents with your wheels with 36 months, we are willing to offer you new wheels at minimum cost. This warranty is non-transferable and valid to the original purchaser of the product only. The following improper use will void your warranty 1. Crashes and accidents 2. Misuse (off-road riding, jumping, trick riding, Cyclocross, etc) 3. Modification of wheels or Improper assembly 4. Tire pressure exceeding 140psi 5. Normal wear and tear 6. Improper follow-up maintenance or maintenance by an unauthorized technician. 7. Installation of parts or accessories not originally intended for, or not compatible with the wheelset as sold 8. Damage or deterioration on the surface finish or appearance which has no effect on the function 9. Damages caused by natural disaster This warranty does not cover: 1. Normal wear items (bearings, skewers, spokes etc. 2. Surface finishes and cosmetic treatments (anodizing, decals, etc) 3. All other bicycle components 4. Consequential or incidental damages (where applicable) Warning: If you do not follow these guidelines,the warranty will be void. 1.Use brake pads for carbon rims only. Change brake pads when wear is indicated. 2.Use high pressure rim tape for clincher wheels. 3.Clean rim surface and brake pads before you use your wheels. 4.Exceed the maximum tire inflation pressure recommended. Road: 130psi; MTB: 65psi Whenwill my rims/wheelsetsbe shippedafter Imake the payment? If the rims or wheelsets are in stock, we will ship them out within 3 business days. If there is no stock, it will take about 7~21 days for rims manufacturing. What shipping method do you use? Normally, we ship the products by Aliexpress Standard Shipping. The estimated delivery time by Aliexpress Standard is 14 ~18 business days.If you wanna use a faster shipping method, like DHL, FedEx, UPS, TNT etc, please contact us, you may need to pay additional shipping cost. Delivery time depends on destination and other factors. If you have not received your shipment within 20 days of payment, please feel free to contact us. We will track the shipment and get back to you as soon as possible. If you still do not receive the package for 2 months, we will arrange new products for you or arrange a refund. Are there any import taxes or customs charges that I need to be aware of if I purchase this and have it shipped to XXX country? The Customs policy varies from countries to countries regarding import taxes and duties. Taxes are not included in either item prices or shipping cost. Customs fees, or Customs duties may be charged when parcel arrives at your country. Whether your parcel will be taxed and what amount will be charged is beyond our control. If you have any specific request on Custom declaration, please send message to us and we will do our best to help you solve the problem. We also offer DDP shipping method to European countries. If the wheels will be delivered to below countries, please check with us whether you can use this service or not. Italy, Spain, Greece, Portugal, Hungary, Denmark, Estonia, Finland, Germany, Norway, Sweden If the wheels will be delivered to below countries, just click the picture above for the upgrade. Belgium,Poland, Lithuania, Austria, Luxemburg, Czech, Slovakia, Slovenia, Latvia, Ireland What can I do if I receive a damaged parcel? Your rims/wheels will be packed and protected carefully to make sure that they are in good conditions. If the parcel arrives at you with obvious shipping damage, please refuse to sign for it. Then the package will be returned to DEEROBUST and we'll produce new products for you or arrange a refund. If you have signed for the package and then find damage due to shipping, please contact us immediately. We will help you to solve the problem as soon as possible. Please save all packaging and paperwork for the order if they are damaged due to shipping . Established in 2014, DEEROBUST Bicycle Co., Ltd. is focused on hand-built high performance carbon wheels.Building premium wheels that offer impeccable ride quality and unmatched durability is our priority. With 7-year experience in carbon wheels industry, profound expertise and consistent quality, we are confident to introduce “DEEROBUST” to the professional and amateur riders. DEERBOUST is the combination of “DEER” and “ROBUST”, which represents the characteristics of our carbon wheels, lightweight, efficiency and stability. As a quality oriented company, we offer high-end customization and complete product line on carbon wheels. DEEROBUST only offer mid-end and high-end wheelsets from MTB XC/TRAIL/AM/DH/FR, Road disc brake/rim brake to small size wheels like balance bike, bmx and folding bike, which are almost built for training and competition, All our carbon rims are customized from the top factory which do OEM&ODM for many world famous brand. Our standard for the rims are very strict and we only pick the rims that meet standard to build the wheels for you. As our production time is comparatively longer, please contact us if your demand is urgent. As the technology of carbon rims is improved day by day, we would like to provide the wheels with the rims which are up-to-date. As a result, we do not prepare many stock and almost all our rims are newly produced after order received to suit different demand from different racers.
